Description

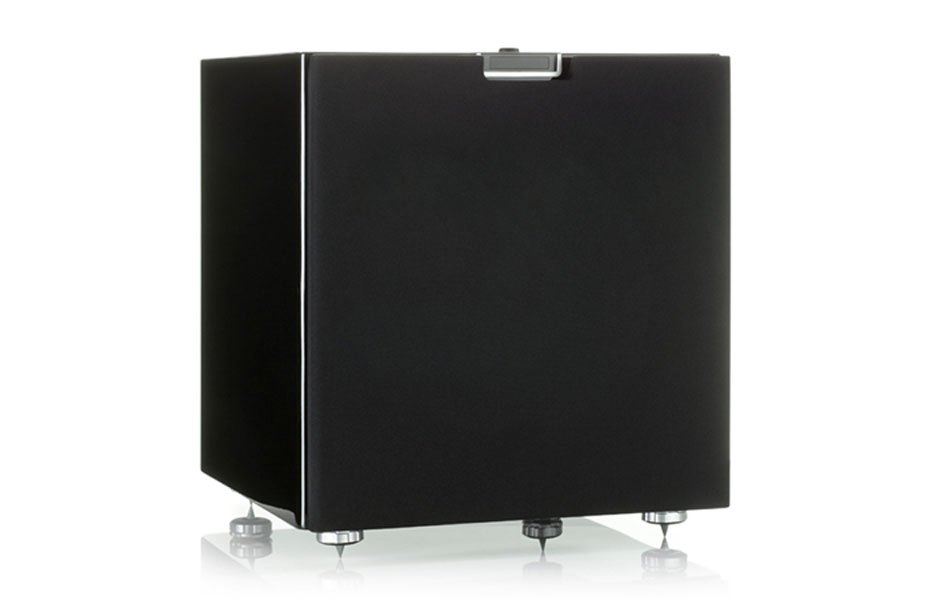

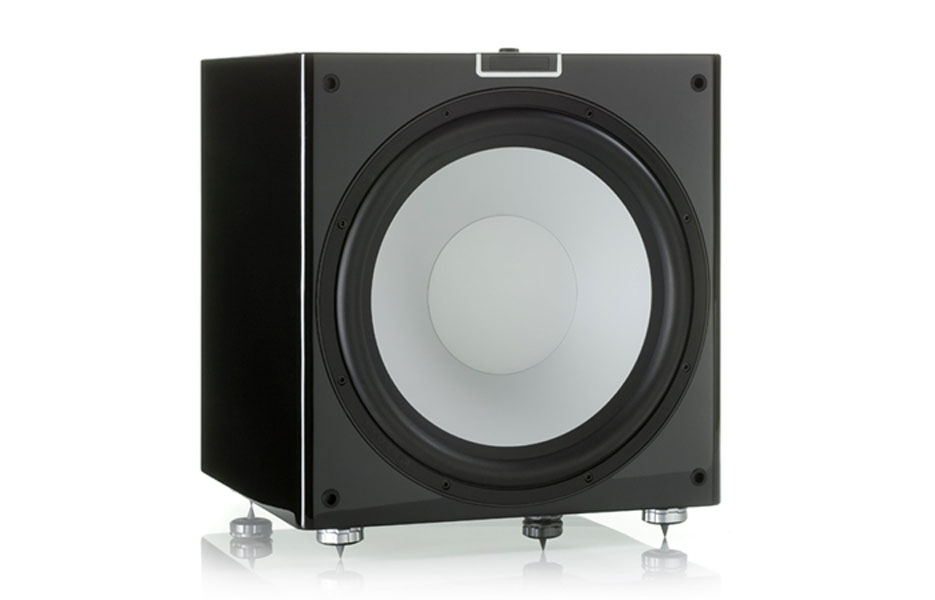

Monitor Audio Gold W15 Piano Black

System Format:
Sealed Cabinet
25mm M.D.F construction with internal bracing
Sealed amplifier compartment

Lower Frequency Limit:
18Hz

Upper Frequency Limit:
40-120Hz Variable

Drive Unit Complement:
1 x 38.1cm C-CAM sub-woofer driver featuring triple suspension
7.62cm long throw voice coil

Low Pass Filter Alignment:
Active 4th order 24dB/octave (6/12/18/24dB user adjustable)

Amplifier Output:
650W Continuous. 1200W Peak

Amplifier Classification:
D2Audio^TM DSP controlled, Class-D amplifier system
High current switch mode power supply (SMPSU)

Equalisation:
4 Settings (Off/Music/Movie/Impact)

Phase Control:
0-90-180-270°

Auto Sensing Input Requirements:
Line Level > 2mV
Standby after 10 minutes if no signal sensed

Digital Volume Level:
-60 to +10dB in 1dB increments

Trigger Input:
3.5mm mono jack socket

Connection:
Stereo RCA in/out
LFE in/out
12V Trigger in (3.5mm mono jack)
LEO* – 3.5mm Microphone input jack (microphone supplied)

Input Impedance:
20kΩ

Mains Input Voltage:
100-120V
220-240V 50/60Hz (Factory preset)

Electrical Certifications:
CE/CB/ETL/Fcc/ErP (Energy saving compliant)

Power Consumption:
Maximum 1000W. Standby < 0.5W (ErP Compliance)

Fuse Type:
20mm UL/VDE (Value is region specific)

IR Remote Control Code:
NEC SH6122

Dimensions (HxWxD):
430 x 400 x 400mm

Grille Depth:
28 mm

Weight (unpacked):
35.3kg

Garancija: 12 mesecev (slovenska)
